Banjo Adapter To Stainless Steel Banjo Bolt Assembly in BLACK Banjo Adapter To Stainless Steel Banjo Bolt Assembly in BLACK
Billet Aluminum Line P Clamp Billet Aluminum Line P Clamp

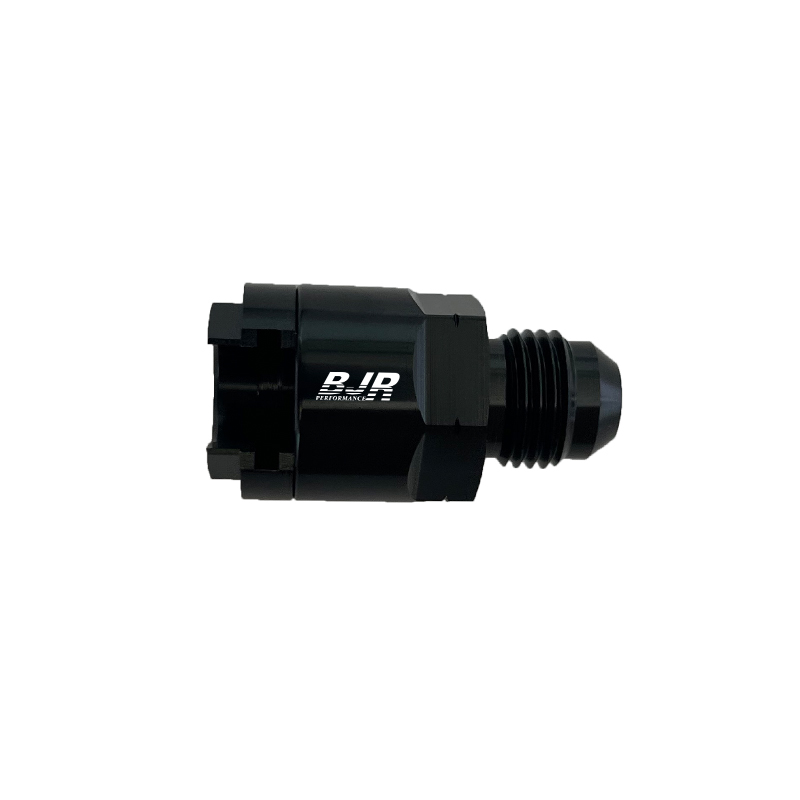

AN To Male Quick Connect AN To Male Quick Connect
NPT Reducer NPT Reducer
9261 AN Tee Female Swivel On Run 9261 AN Tee Female Swivel On Run
9211 90° Female AN Swivel To Male 9211 90° Female AN Swivel To Male
AN Reducer AN Reducer

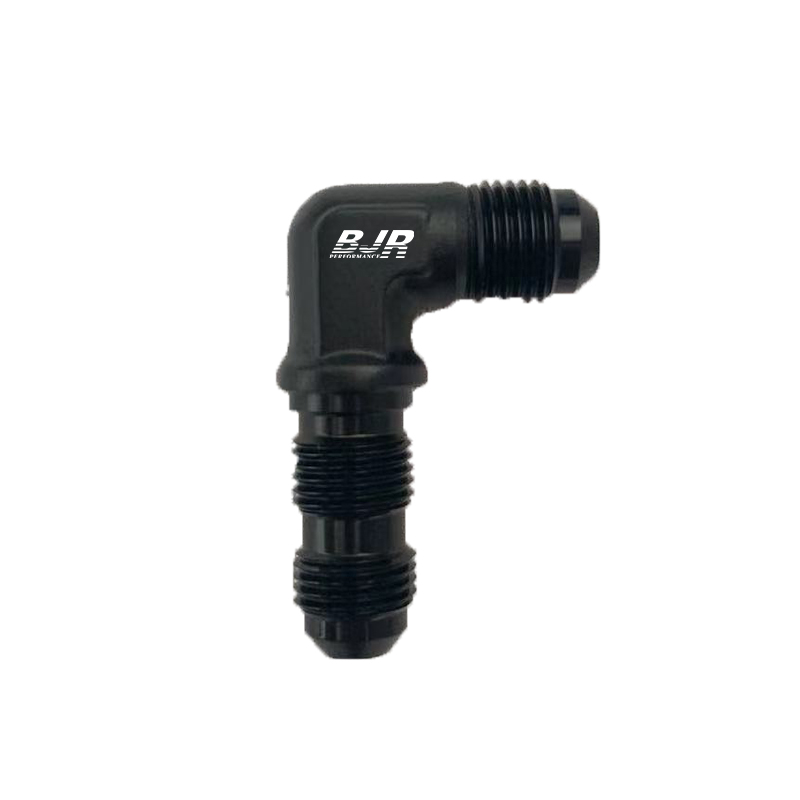

45° Flare Bulkhead 45° Flare Bulkhead
834 Flare Bulkhead Tee 834 Flare Bulkhead Tee
826 Flare Tee AN To NPT On Run 826 Flare Tee AN To NPT On Run
Flare Tee Flare Tee
804 Bulkhead Tee On Run 804 Bulkhead Tee On Run
Magnetic Oil Drain Plug With Washer Magnetic Oil Drain Plug With Washer
AN Male To Female Adapter AN Male To Female Adapter
Female to Barb Straight Female to Barb Straight

Technical Information

  • Male NPT Identification Chart

The line drawings below depict the actual sizes of the various common NPT thread sizes. If you are unsure as to what thread size you are using lay your fittings over the appropriate drawing to determine its size.

  • Male AN/ORB Adapter Identification Chart

The line drawings below depict the actual sizes of the various common AN/ORB thread sizes. If you are unsure as to what size fittings you have lay your fittings over the approatiate drawing to determine its size.

NOTE: -AN and ORB thread are the same diameter. AN seals with the fare, ORB seals with an O-ring.




  • AN HEX Or Identification Chart

The line drawings below depict the actual sizes of the various common types of fittings, hoses and adapters. The number is SAE spanner size equivalent.

NPT  (National Pipe Thread )
Thread Size Threads Per Inch Closets AN Size
1/16'' 27 3
1/8'' 27 4
1/4'' 18 6
3/8'' 18 8
1/2'' 14 10
3/4'' 14 12
1'' 11 -/1/2 16
1-1/4'' 11 -/1/2 20
1-1/2'' 11 -/1/2 24
2'' 11 -/1/2 32



AN Thread
Thread Size Threads Size SAE Threads Per Inch Max Torque
-3 .3/8 24 8.75
-4 .7/16 20 11.5
-5 .1/2 20 14.3
-6 .9/16 18 16.25
-7 .5/8 18 19.5
-8 .3/4 16 29
-10 .7/8 14 35
-12 1 -/1/16 12 45
-16 1 -/5/16 12 70
-20 1-/5/8 12 85



AN NUT
Hex Sizes B Nut AN Size S Nut Hose Side
-3 1/2''
-4 9/16'' 23/32''
-6 11/16'' 7/8''
-8 7/8'' 1-1/32''
-10 1'' 1-7/26''
-12 1-1/4'' 1-7/16''
-16 1-1/2'' 1-3/4''
-20 2'' 2-5/16''
