FEATURES

     Design: Mono tube design

Body: Smooth body, seamless steel,

 internal & external polished and honed,

Body Plating: Environment friendly white zinc-galvanized surface,

Components: CNC machined 6061 aluminum alloy

Hose: German Continental brand oil hose, maximum pressure 22.4MPA

Valving: Tunable, velocity sensitive deburred valve shims

        Seal: Japan NOK twin-lips main oil seal (same with KYB OEM shock absorbers)

             wiper seal and scraper seal

        Oil: German FUCHS brand shock oil (freezing point lower than-53 ˚),

advanced suspension fluid for improved performance at variable temperatures.  Piston Rod: 18mm diameter, hard chrome plated, heat-treated

Piston Rings: PFTE materials

Bearing: Spherical, PFTE-lined, heat-treated alloy steel

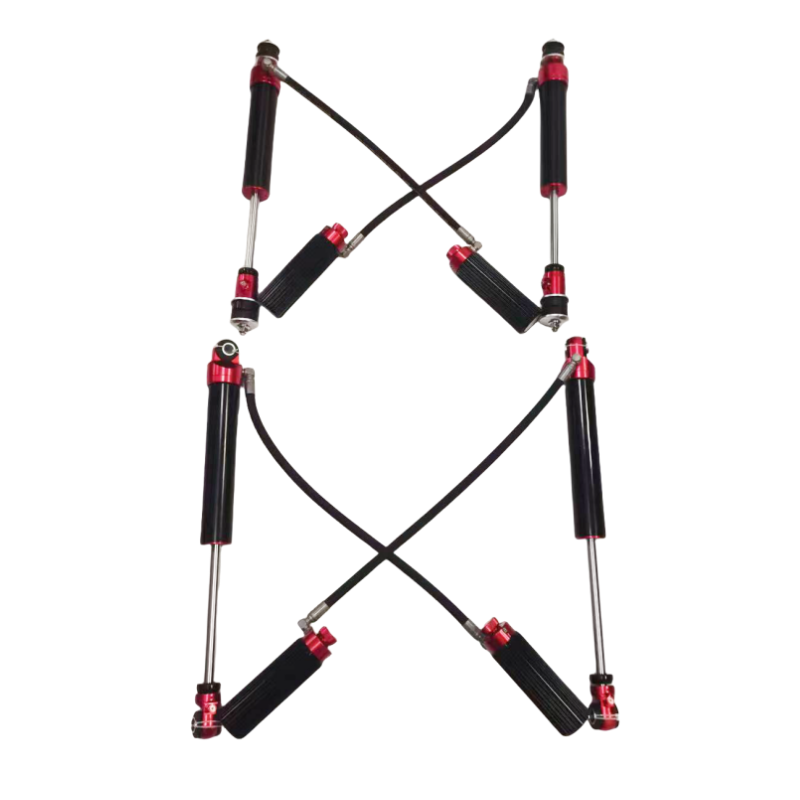

2.25/2.5/3.0 REMOTE RESERVOIR

Body: 6061 aluminum alloy, with heat dissipation system

Lubricant: Japan made lubricant oil

Piston: High or low flow piston

Adjustor: CNC machined aluminum

Charge inlet: Only specialist allowed operating the nitrogen releasing and charging

PARAMETERS:

Diameter: 2.25/2.5/3.0 inches available

        Lift: 0/2/4/6/8 inches lift available

     Adjust: Compression 8 steps adjust

Compression 8 steps +rebound 6 steps adjust

     Colors: red, yellow, green, pink, purple, black available

Application:

    1987-1997   NISSAN PATROL Y60

1998-2020   NISSAN PATROL Y61

Advantages:

-OE quality, OE INSTALLATION

 Designed according to OE standard, easy to install

- Stable performance, suitable all kinds of driving conditions/all terrain

  HPR shock absorbers are selecting high quality mechanism parts to make sure the extraordinary durability, intensity even in the extremely environments.

HPR shock absorbers provide tight grip and better manoeuving even in case of large load

-Comfortable, better manoeuving

 Height Higher-lower adjustable and performance hard-soft adjustable, to suitable not only mountain, desert, snow, racing field etc extreme conditions’ driving, but also the normal street use.

-Protect car body and other spare parts

 Reduce the impact to the car body, protecting other spare parts, meanwhile provides the driving comfortability
